Uniphos-395 Breath Alcohol Analyzer

•  Advanced micro-controller based technology
• Active/passice sampling with fast response
• Detects breath alcohol level between Oto 500 mg/100ml of Blood or 0.000 to 0.500 BAC
• In-built memory stores upto 3000 test results along with time and date
• Wired/wireless Connectivity

Certification:

Certified for operational accuracy, calibration and physical parameters by the Electronics Regional Test Laboratory (ERTL)

In Stock

Categories:
PRODUCT SPECIFICATION
Download Specifications

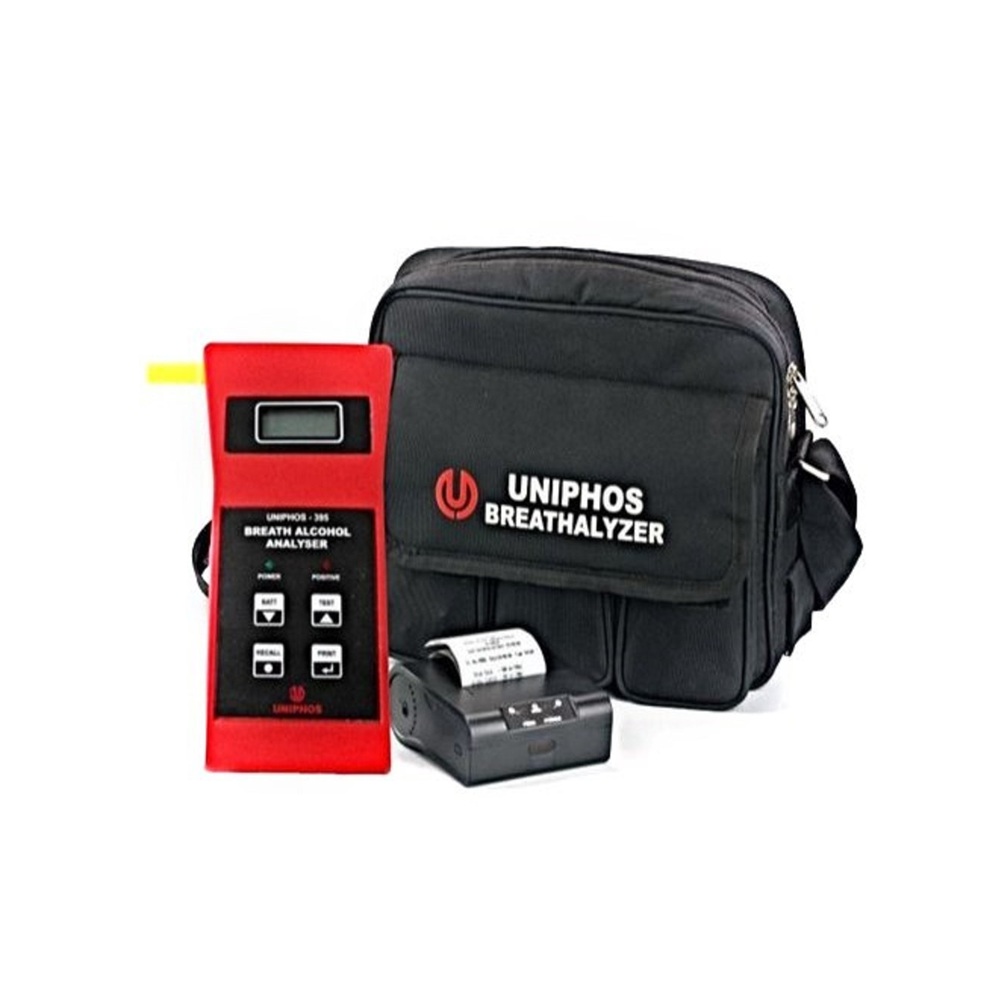

The Uniphos -395 Breath Alcohol Analyser is a microprocessor based hand held instrument, which measures the blood alcohol content in a person who has consumed alcohol. It is done by measuring the breath alcohol content and relating it to the blood alcohol content.

When the breath sample is delivered, the software checks the moderate blow of breath sample continuously for 5 seconds and then the instrument draws approximately 200 µI of breath into fuel cell by means of a pump in 200 miliseconds.

Sensor Electrochemical Fuel Cell
Measuring Range 0-500 mg/100 ml of blood or 0.500 BAC
Resolution Less than 10 seconds
Accuracy +/- 5 mg/100 ml at 100 mg/100 ml or +/- 0.005 BAC at 0.100 BAC
Sampling Active and Passive Sampling
Display LCD/ high – contrast OLED display
Data Storage Can Store up to 3000 test records
Power Supply 7.4V Li-ion battery
Connectivity Wired, Bluetooth
Printer Separate Printer, Dot Matrix /Thermal
Weight 400 gm
