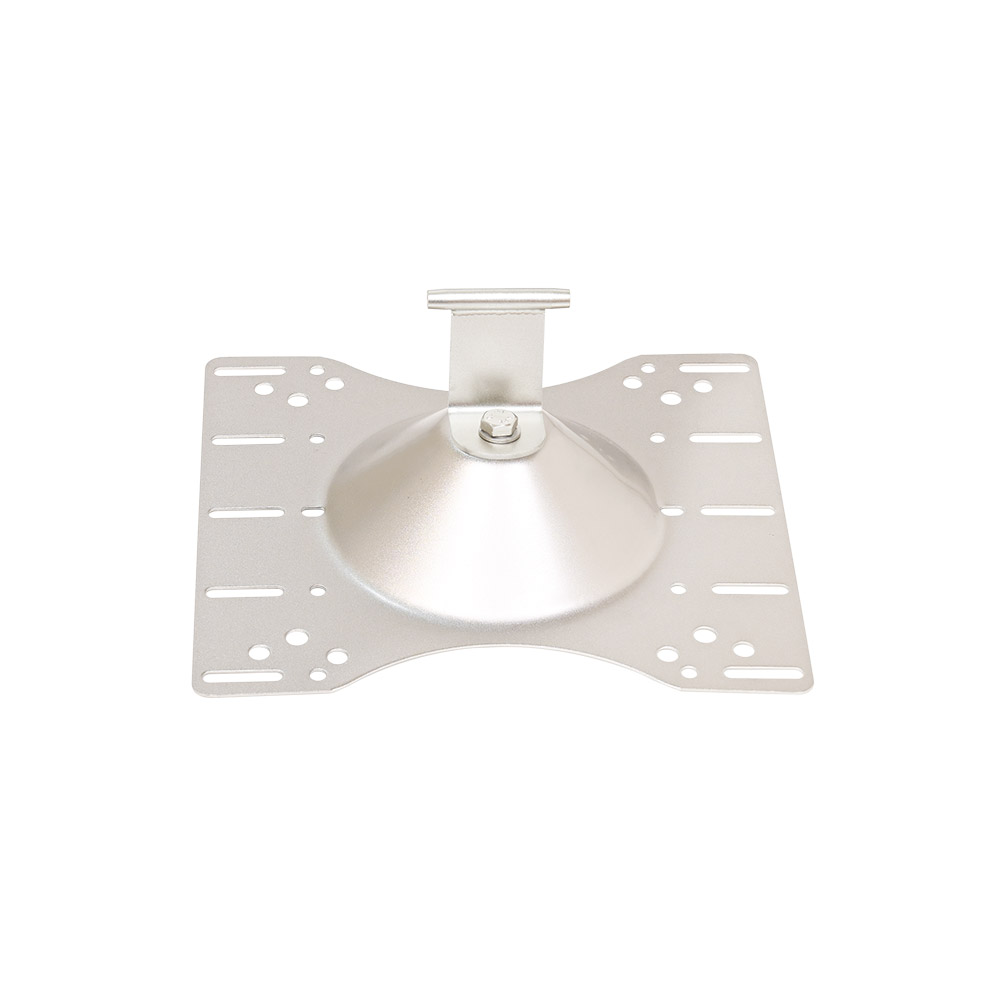

Intermediate Anchor Post for Trapezoidal Roof

  • Intermediate Anchor post designed to be fixed on the Trapezoidal Roof with help of rivets and self-drilled screws supplied with anchor posts.
  • Anchor to be fixed on the roof sheets peak to prevent water clogging.
  • Centre holes to be fixed on purling by using screw.
  • It is compatible with pitch from 200.0 mm, 250.0 mm and 300.0 mm on trapezoidal sheets

Certification:

EN 795:2012 Type C, AS/NZS 5532:2013

CE  ASNZS

In Stock

PRODUCT SPECIFICATION

The Intermediate Anchor Post for Trapezoidal Roof SA 87A(I) is designed for secure installation on trapezoidal roofs using rivets and self-drilled screws. Positioned at the peak of the roof sheet, it prevents water clogging. The anchor post features center holes for easy attachment to purlins using screws. Compatible with trapezoidal sheets of 200mm, 250mm, and 300mm pitch, this anchor post provides a stable and reliable solution for roof safety and secure anchorage, enhancing the durability of the roofing system.

Warranty: 1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions.

Material SS grade 316
Finish Body: ED coated grey Swivel Anchor Eye: Electropolished
Breaking Strength 15kN
Weight 1.67Kg
